Box & Pan Brakes: 5 Year Warranty - Made in USA

Lifetime Warranty

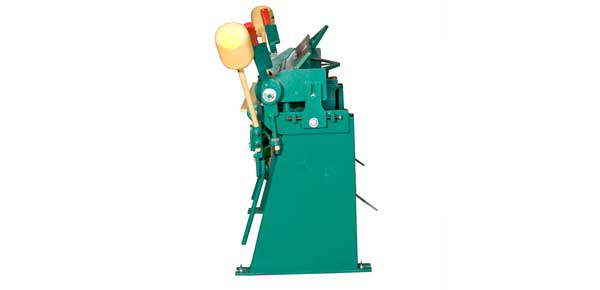

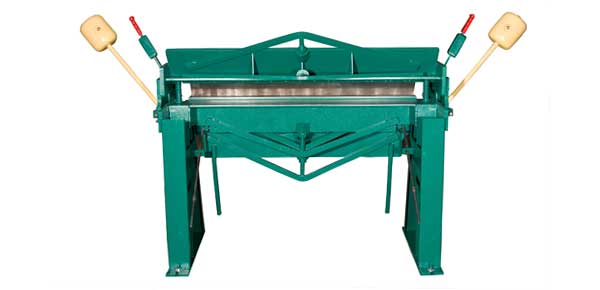

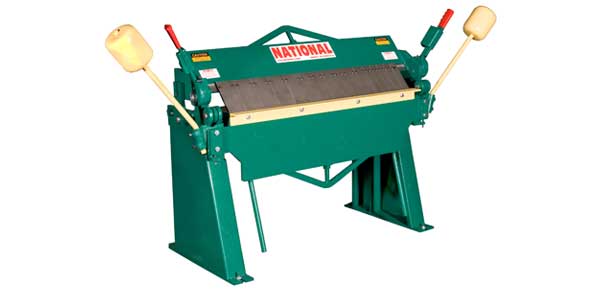

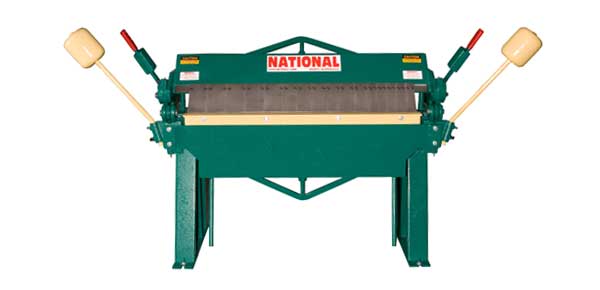

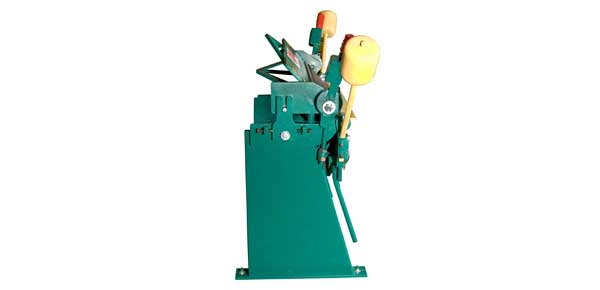

National has four popular floor model box and pan brakes designed to be easy and simple to operate. Standard with 2”, 3” and 4” finger widths, stop rods for repeat bends, two large counterweights, and precision bearings on the apron. All steel body construction with extra heavy tie rods for minimum deflection.
  Specifications
Model U4812 U7216 U7212 U9616
Capacity
(Yield Strength 30,000 lbs. @ rated capacity)
Mild Steel
12 Gauge: 2.7mm
Stainless Steel
16 Gauge: 1.6mm
Mild Steel
16 Gauge: 1.6mm
Stainless Steel
20 Gauge: .9mm
Mild Steel
12 Gauge: 2.7mm
Stainless Steel
16 Gauge: 1.6mm
Mild Steel
16 Gauge: 1.6mm
Stainless Steel
20 Gauge: .9mm
Fimger Width 2”, 3”, 4”
51, 76, 102mm
2”, 3”, 4”
51, 76, 102mm
2”, 3”, 4”
51, 76, 102mm
2”, 3”, 4”
51, 76, 102mm
Maximum Depth of Box 4”/102mm 4”/102mm 4”/102mm 4”/102mm
Bending Length 49”/1245mm 73”/1854mm 73”/1854mm 97”/2464mm
Shipping Weight 1150lbs/522kgs 1850lbs/839kgs 2100lbs/953kgs 2200lbs/998kgs
Floor Space w/ counterweight 95” x 27” x 55”
2413 x 686 x 1397mm
119” x 27” x 55”
3023 x 686 x 1397mm
129” x 27” x 59”
3277 x 686 x 1499mm
143” x 27” x 55”
3632 x 686 x 1397mm
